Item specifics
  • Conversion Efficiency: 0.9
  • Input Voltage: DC 12V
  • Output Voltage: 140 to 249 Volts
  • Output Frequency: 50Hz
  • Brand Name: KONNWEI
  • Rated Power: 220V
Product Description

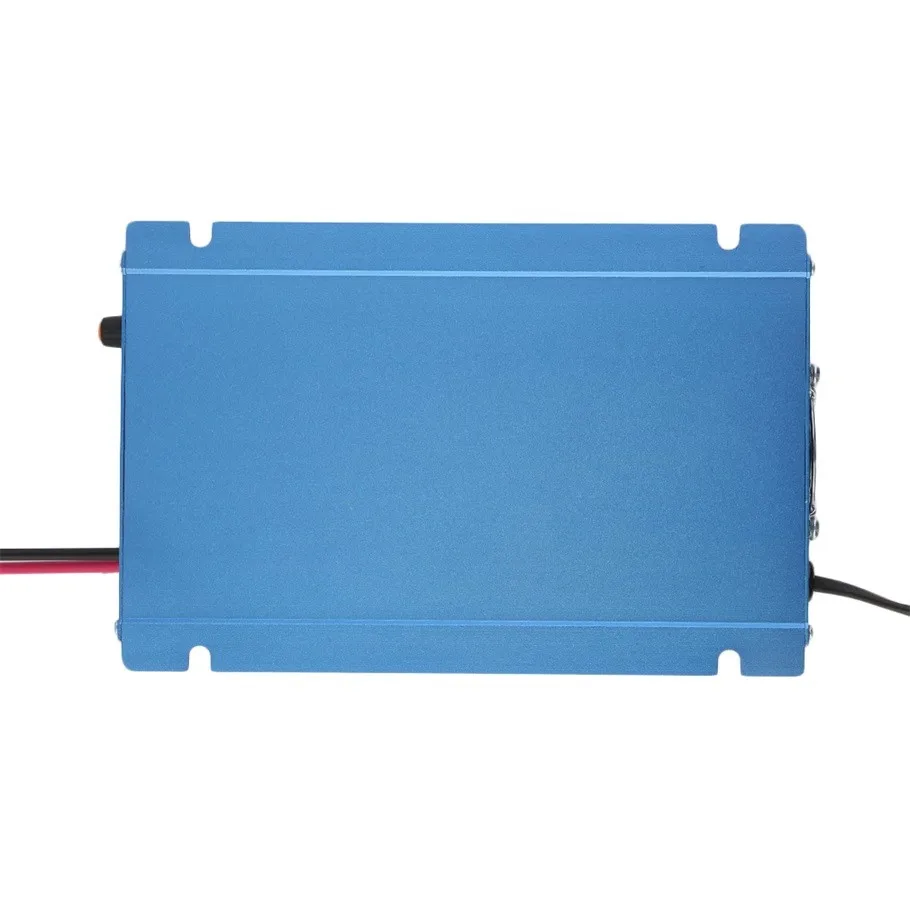

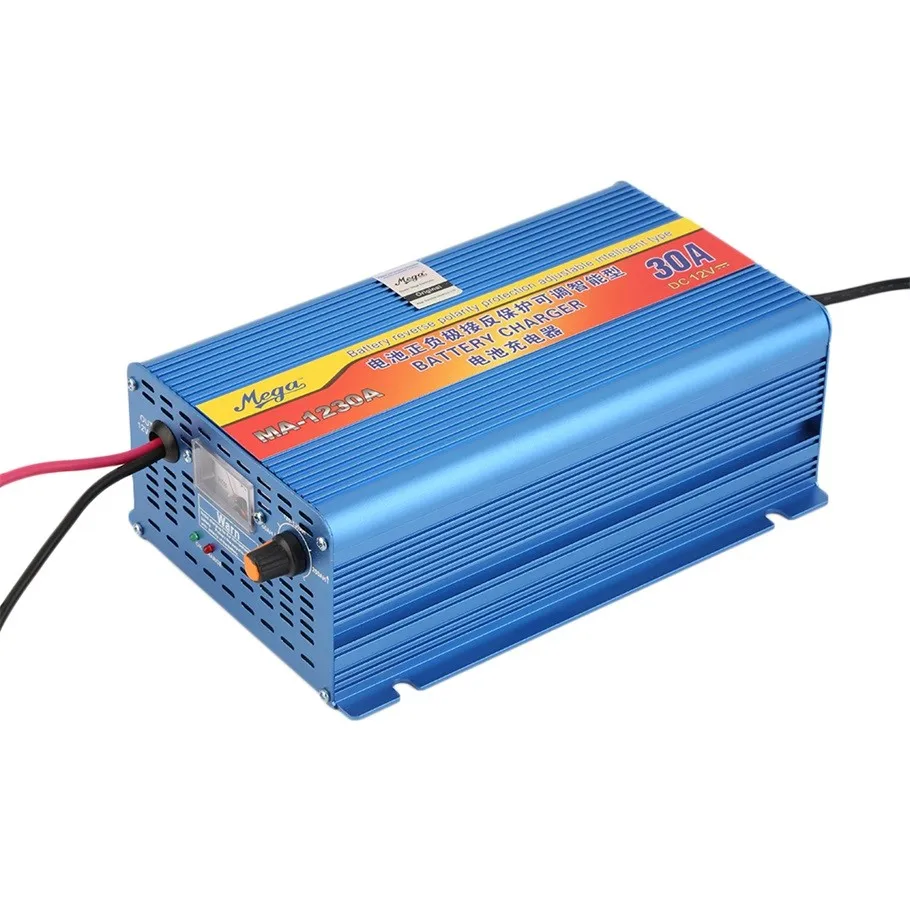

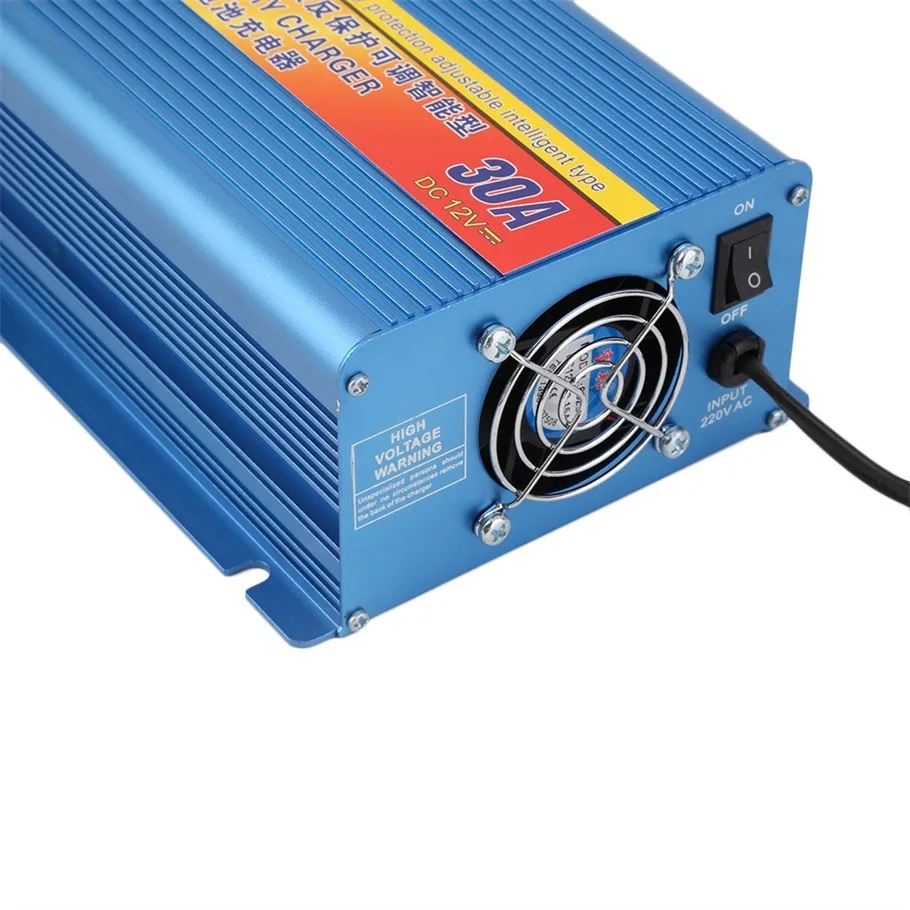

220V Input 30A 12V intelligent Car Battery Charger Motorcycle Charger 12V Lead Acid Charger EU Plug hot selling

Features:
easy to use
long life time
Stable current
Low voltage protection
charger has anti-access Protection, overload protection,Circuit protection.
It uses pulsed High frequency direct current.
Four charge Modes:
Pre-charge Mode: In order to protect the battery, extending battery life, when the battery due to excessive discharge or stored for a long time and cause internal resistance is too large, the voltage is too low automatic output small current to charge the battery. When the battery voltage rises to the set voltage, the charger automatically converted to constant current charging mode.

Constant Current Mode: When the battery voltage is lower than the charger voltage is set constant current charging mode, the battery charger provides constant charging current.

Constant Voltage Mode: Using pulse width modulation technology, precise control of the charger charging current and output voltages to ensure a fully charged battery is charged, to avoid overcharging.

Float Mode: When the battery voltage approaches the set voltage constant voltage charging mode, the charging current is reduced to set current time, battery power has been filled, the light turns green, the cooling fan stopped working. Charger automatically charging mode to trickle charge the float mode. The battery can be disconnected, or continue to float.

Specifications:
Input Voltge: AC 220V±15%
Rated frequency: 47-63Hz
Constant Charging Voltage: 14.5-14.8V
Constant Charging Current: 30A±5%
No-load Voltage: 13.8V
Charging Mode: Four Stages
Size: 240*125*80mm(not count the cable length)
Plug type: EU plug
Color: Blue
Net weight: 1384g
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.The colors may have different as the difference display, pls understand

Package Includes:

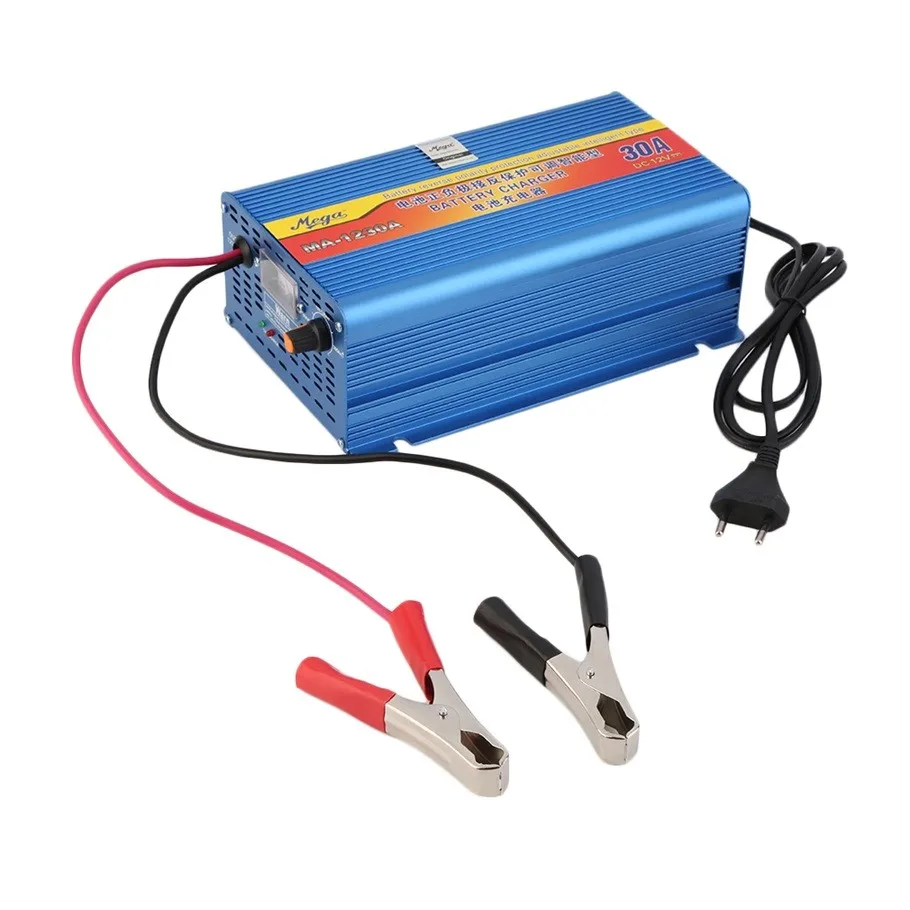

1x 12V 30A Lead Acid Battery Charger
